Solar Bracket (Photovoltaic Bracket) Roll Forming Machine

VIDEO

INTRODUCTION

★Solar Bracket (Photovoltaic Mounting System)

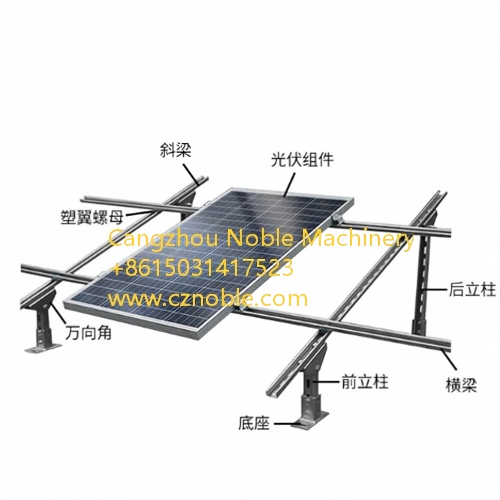

    A solar bracket, dynamically known as a photovoltaic (PV) mounting system or solar racking system, is a specialized structure designed to support, anchor, and tilt solar panels. They are critical components of any solar energy system, ensuring that panels remain securely fixed under extreme weather conditions while optimizing sunlight absorption.

• Key Functions:

• Structural Support: Holds the heavy weight of solar modules and secures them against strong winds, heavy snow loads, and seismic activities.

• Angle Optimization: Tilts the panels at a specific angle to maximize solar irradiance and energy yield.

• Durability: Typically made of corrosion-resistant materials like hot-dip galvanized steel, aluminum alloy, or stainless steel to ensure a lifespan of 25+ years.

• Main Types:

• Fixed Mounting Systems: The panels are locked at a predetermined angle (Ground mounts, Roof mounts, Carport mounts).

• Solar Tracking Systems: The brackets move dynamically to follow the sun’s path throughout the day (Single-axis or Dual-axis trackers), increasing energy output by 15% to 30%.

★Solar Bracket Roll Forming Machine

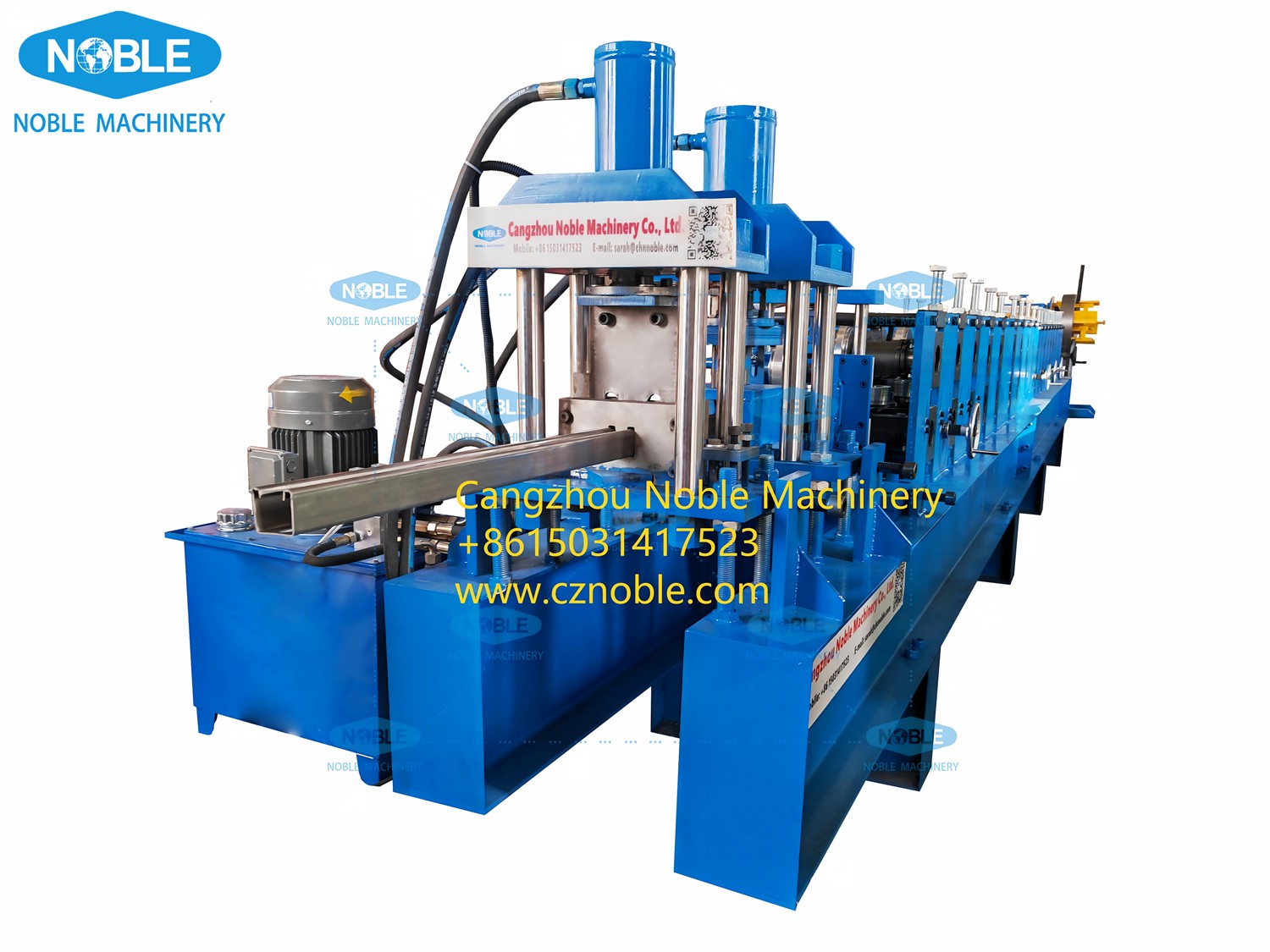

        A solar bracket roll forming machine is the industrial manufacturing equipment used to produce these metal solar brackets. It takes raw metal coils and transforms them into precise structural profiles through a continuous bending process.

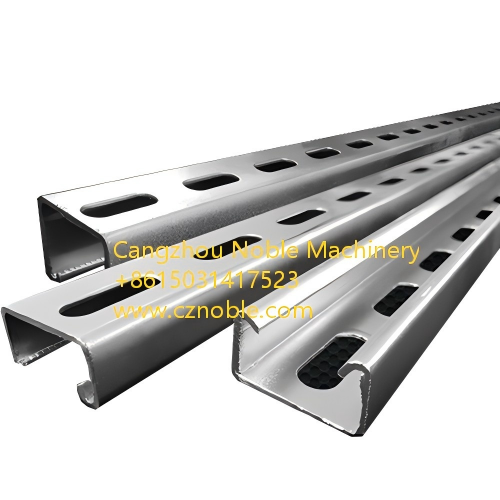

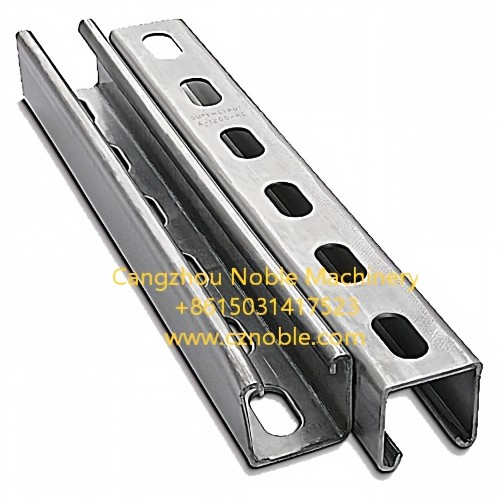

        The most common profile produced for solar racking is the C-channel (or Strut channel), often featuring pre-punched holes for easy adjustment and installation.

• How It Works (The Production Line):

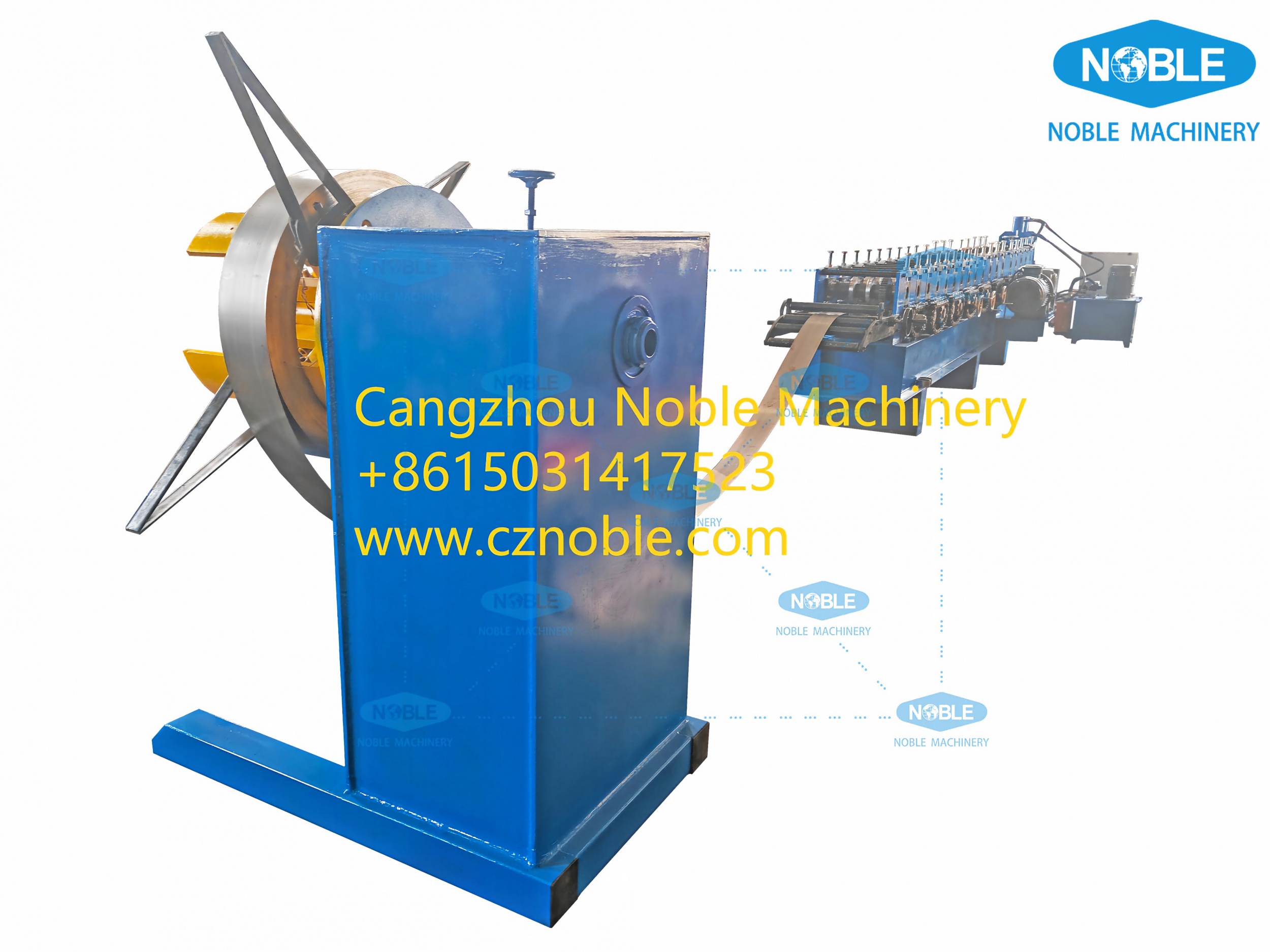

1. De-coiler: Holds and feeds the raw metal sheet (steel coil) into the line.

2. Feeding & Leveling: Flattens the metal sheet to ensure accuracy.

3. Punching Unit: Uses a hydraulic press to punch the required holes or slots before the metal is shaped.

4. Roll Forming Mill: Passes the sheet through a series of rollers that progressively bend the metal into the desired shape (e.g., C, U, or Z profiles).

5. Cutting Unit: A hydraulic post-cutter cuts the formed bracket to the exact required length.

6. Control System: Regulated by a PLC (Programmable Logic Controller) system to automate the entire process, ensuring high speed and millimeter-level precision.

• Key Benefits:

• High Efficiency: Capable of producing brackets at high speeds (often 10–25 meters per minute).

• High Precision: Delivers consistent dimensions and perfectly aligned hole spacing, which is crucial for rapid on-site solar installations.

• Material Versatility: Can process heavy-duty galvanized steel, ranging from 1.5 mm to 3.0 mm in thickness.

**************************************************
