Introduction to the Double-Layer Roll Forming Machine for the Philippines

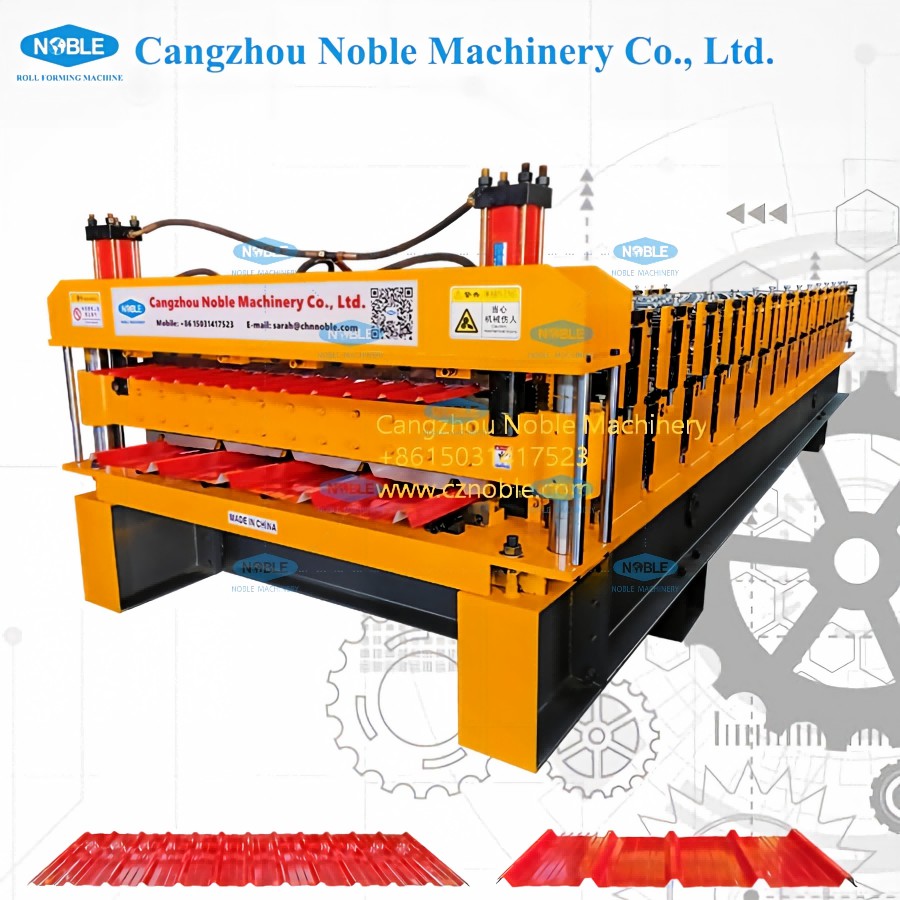

    A double-layer roll forming machine (also known as a dual-level or double-deck roofing machine) is a highly efficient, space-saving manufacturing solution designed to produce two different metal roofing profiles using a single machine base.

    In the Philippine construction market, steel roofing is the dominant choice for residential, commercial, and industrial buildings due to its durability against tropical storms and typhoons. This machine allows manufacturers to switch between the two most popular Philippine roofing designs instantly without changing rollers.

The Most Common Profile Combinations in the Philippines

    A standard double-layer machine for the Philippine market typically integrates two of the following three profiles:

• Corrugated Type (Sinusoidal)



• The traditional, classic wavy profile. Highly favored for budget residential projects and traditional structures.

• Often placed on the bottom layer.

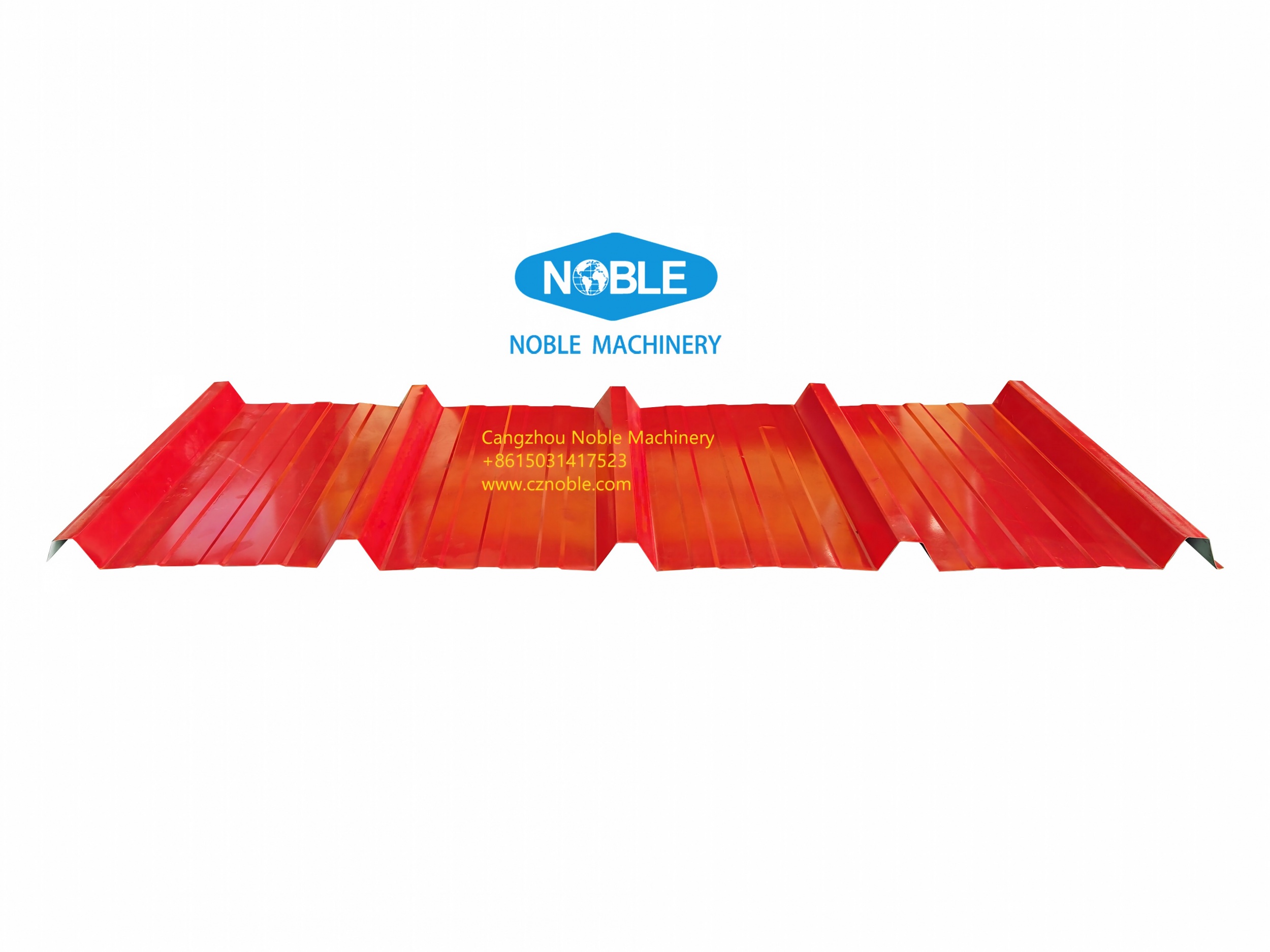

• Rib Type (Trapezoidal / Box Profile)


• The most popular modern profile.

• Features 3, 4, or 5 ribs (e.g., Rib 500). Widely used for modern residential roofs, commercial warehouses, and industrial plants because of its excellent water drainage and high strength.

• Often placed on the top layer.


• Tile Effect (Step Tile / Mandarina)


• Premium aesthetic profile that mimics traditional clay tiles.

• Highly popular for high-end residential villas and subdivisions.

• Can be customized on either layer, usually requiring an extra hydraulic stepping press.


Key Technical Specifications

• Raw Material: Pre-painted galvanized steel (PPGI), Pre-painted galvalume (PPGL), or Aluzinc.

• Material Thickness: Typically 0.40 mm to 0.60 mm (the standard gauge range used in the Philippines to withstand high winds).

• Coil Width: Standard 1220 mm (4 feet) or 914 mm (3 feet) feeding width.

• Control System: PLC Automatic Control System (usually Panasonic, Siemens, or Delta) with a touch screen, supporting English interface.

• Cutting System: Post-cut, hydraulic stop-to-shear mechanism with two customized cutting blades matching each profile.

• Forming Speed: 15 – 20 meters per minute.


Core Advantages for the Philippine Market

• Space Efficiency: Industrial real estate can be costly. This machine occupies the footprint of only one machine but delivers the output of two.

• Cost-Effective Investment: Instead of buying two separate single-layer machines, two decoupling decoilers, and two PLC systems, you invest in one dual-frame machine, drastically reducing setup costs.

• High Adaptability to Weather: The precision engineered rollers ensure the ribs and curves are perfectly formed, preventing water leakage during the heavy rains of the Philippine monsoon season.

• Ease of Operation: Operators can switch between producing Rib-type and Corrugated-type sheets simply by selecting the option on the PLC touch screen and feeding the coil into the corresponding layer.
