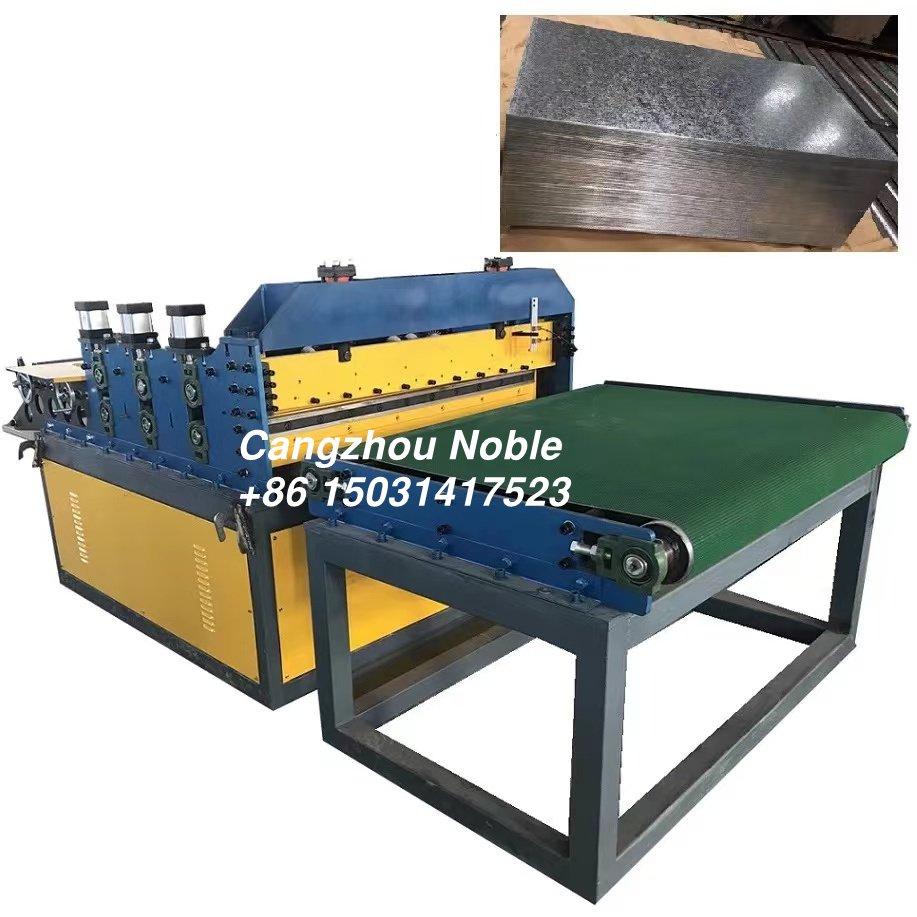

Metal Sheet Cut to Length Producing Line

Name: Metal Sheet Cut to Length Producing Line
Rating: 4.8 (95 reviews)

slitting line

Steel Slitting Cutting Producing line

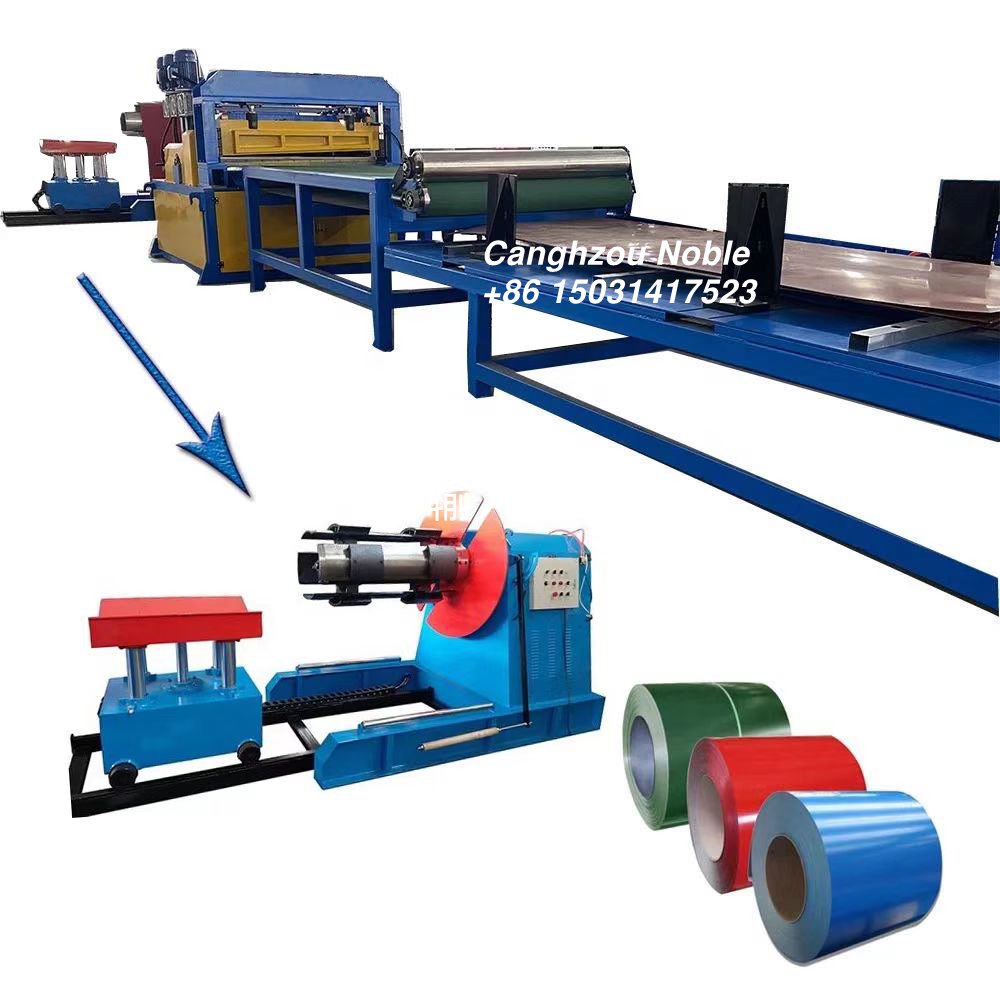

1500mm Coil Width High Precision Cut to Length Line Machine for Metal Sheet is mainly used to cut metal plate for required length acccording to user. It is automatic cut length while set required length datas on Plc system. For this machine, we design it to suit 5 groups different length data, while one group product is finished, the cut to length machine will start to produce the next group product automatically. It is very simple and safe for machine operator. The Cut to lenght machine Line includes manual decoiler, cut to length machine and output table.

Introduction

Basic Info.

Model NO.

NB-1500mm

Usage

Roof, Wall, Floor

Transmission Method

Machinery

Color

Green/Blue/Yellow/as Client Like

Woking Speed

0-15m/Min

Drive Style

Gear Box / Gear / Chain

Raw Material

PPGI/PPGL/Gi/Gl/Alumunium

PLC

Orignal Taiwan Delta/Siemens/ Schneider

Base Frame

350h/400h/500h Steel Beam Weld

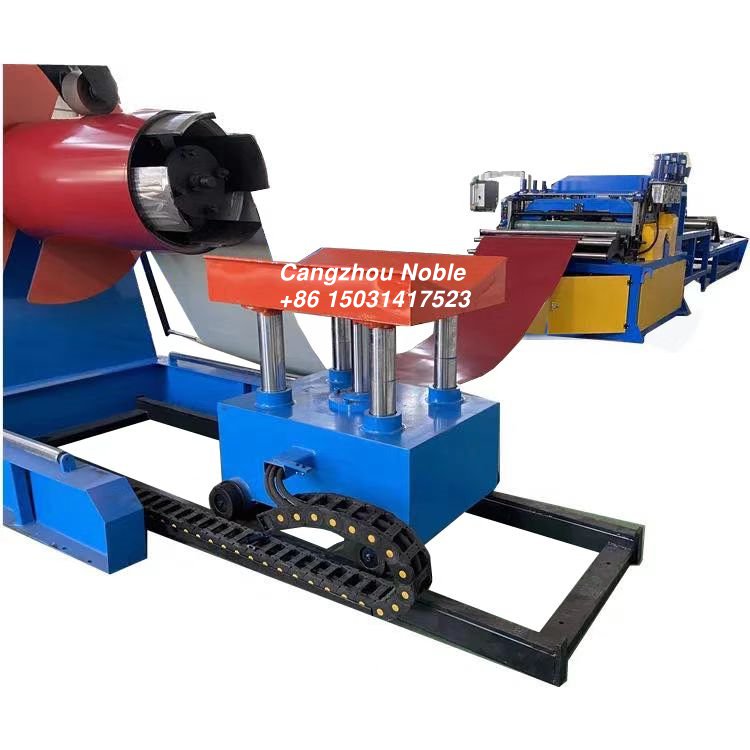

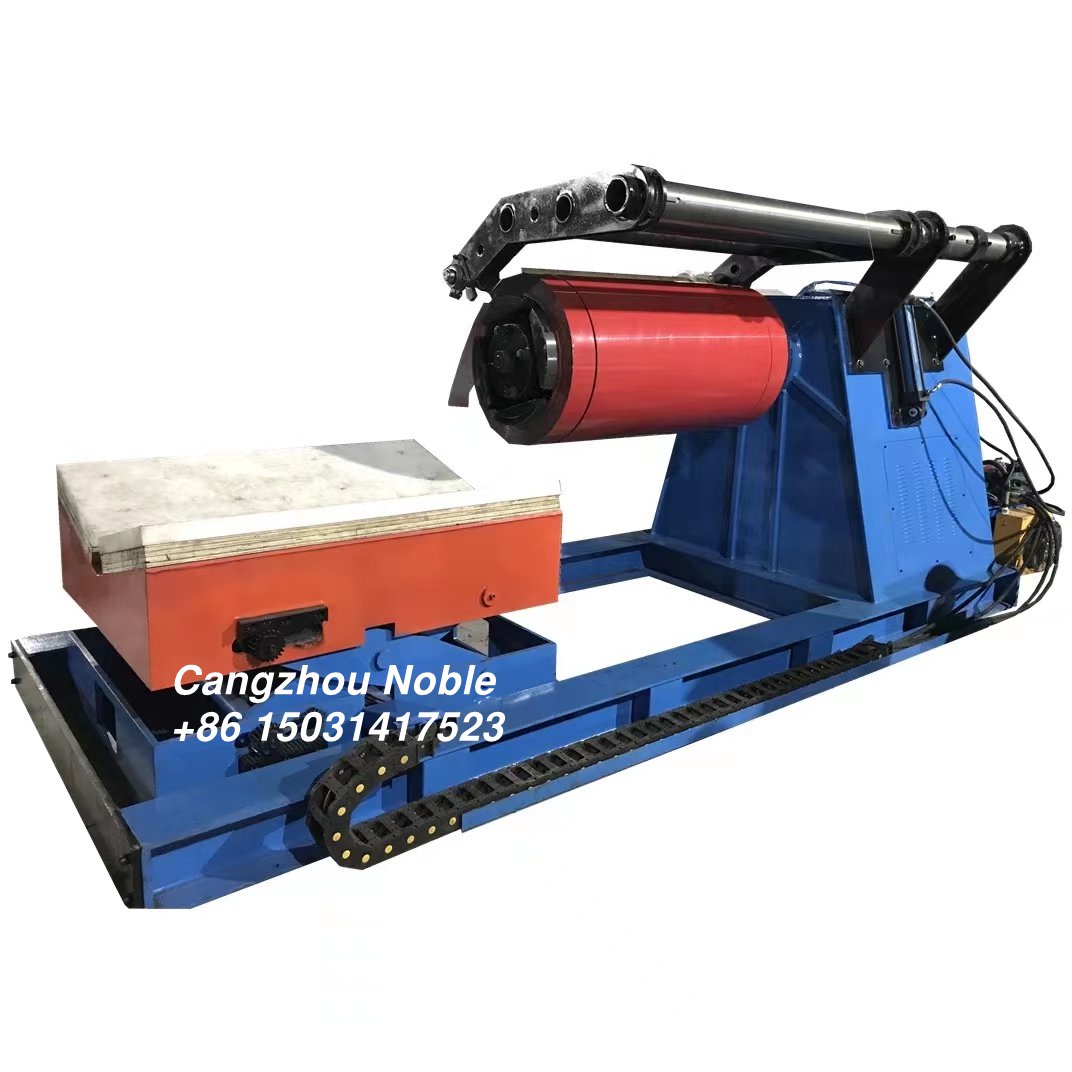

Decoiler

Manual Type 5t Capacity with Brake System

Cutting Type

Eletrical Motor Drive/Hydrualic Type

Cylindar

Hob High Strengthen

Material thickness

0.3-6.0 mm

Power

11kw

Motor

Shanghai Lichao Brand

After-Sale-Service

Online 24hours/Field Support

Hydraulic System

4.0kw Motor with Cooling Fan

Side Plate

18/20/22mm Thickness

Transport Package

Plastic Packing & Wooden Case Packing

Specification

8000*1600*1000mm

Trademark

Noble

Origin

Hebei, China

HS Code

8455221000

Production Capacity

500sets/Year
